Output jack module: 3.5 and 6.3

Outjack module allows connect any microrack signal to headphones or any line input (speakers etc.). Also has embedded speakers: when no jack connected to the module, the sound comes from the speakers.
There are two working modes:

  • In mono mode all 12 inputs joined and pass simultaneously to left and right channel.
  • In stereo mode 6 inputs passes to left channel and 6 inputs passes to right channel respectively.

outjack

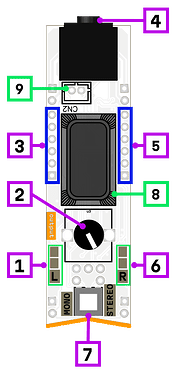

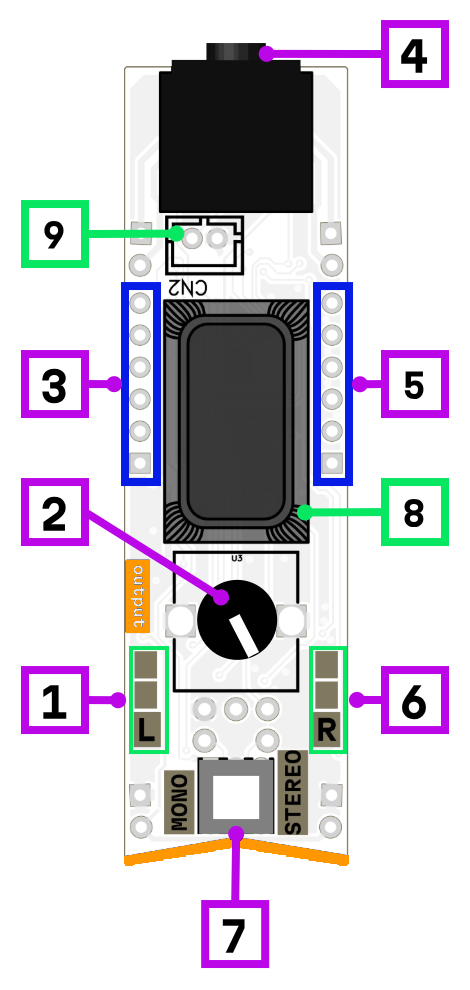

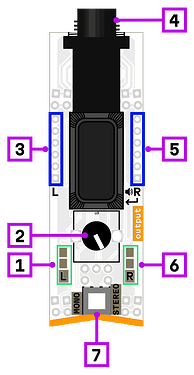

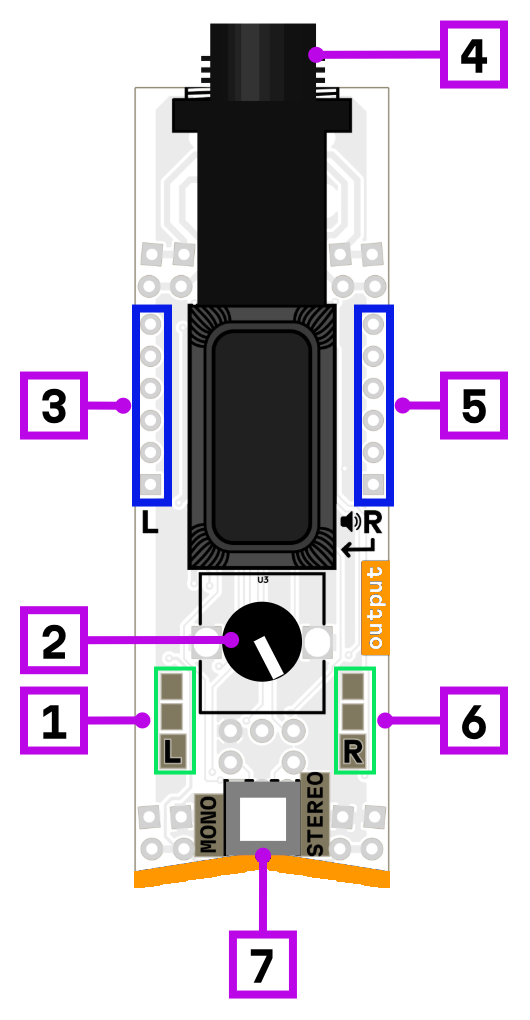

Image of the latest released version of the module. This is not the final product, development is in progress.

Known issues:

  • right and left channel are swapped
  • no speaker connection
  • 3.5-mm jack has low quality and connection is lost sometimes
  • modes backlight is too dark
  • update pcb outline and color marking is needed
1 Like

Module description was updated!
