Stylus keyboard

MICRORACK Modules
1

Stylus keyboard that outputs CV/Gate signals.

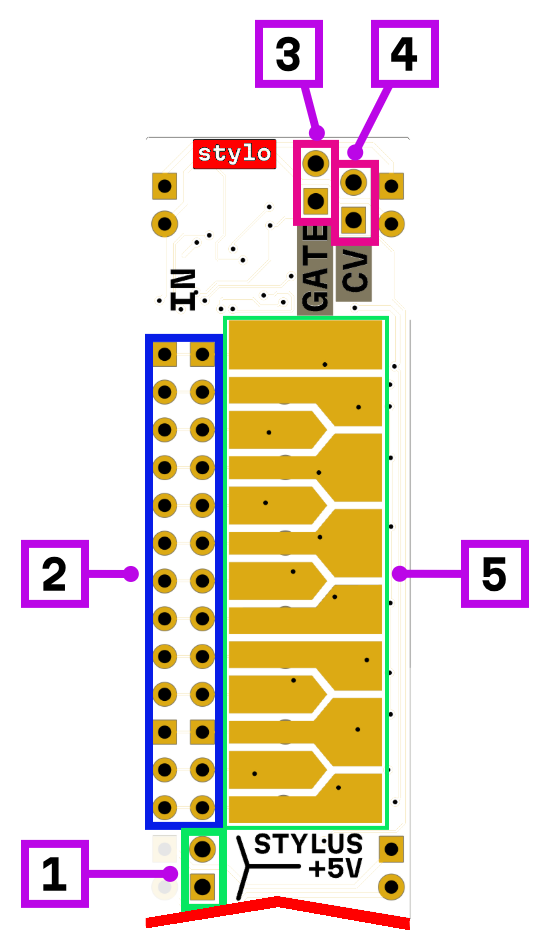

Connect an alligator clip wire or male-female jumper to the +5V pins. Now you can play: touching the keyboard pads outputs a Gate signal (5V) and a 1 V/oct CV signal (0V for the first C note, 1V for the last C note). The CV signal remains constant between key presses.

Each pad is also connected to pins, allowing you to connect external gate/trigger sources to activate notes as if you were playing them by hand.

image550×952 84.9 KB

:blue_book: Documentation: modules — stylus keyboard
:shopping_cart: Product page: microrack — Stylus keyboard

2 Likes
2

Might be an idea to add some relevant low cost utility modules to the keyboard to take up some real estate so the keyboard can be placed in the system with the keyboard landscape. Could also be an idea to come up with an adaptor to enable users to stack modules in a landscape configuration similar to a 1u-3u/3u-1u adapter for eurorack.
